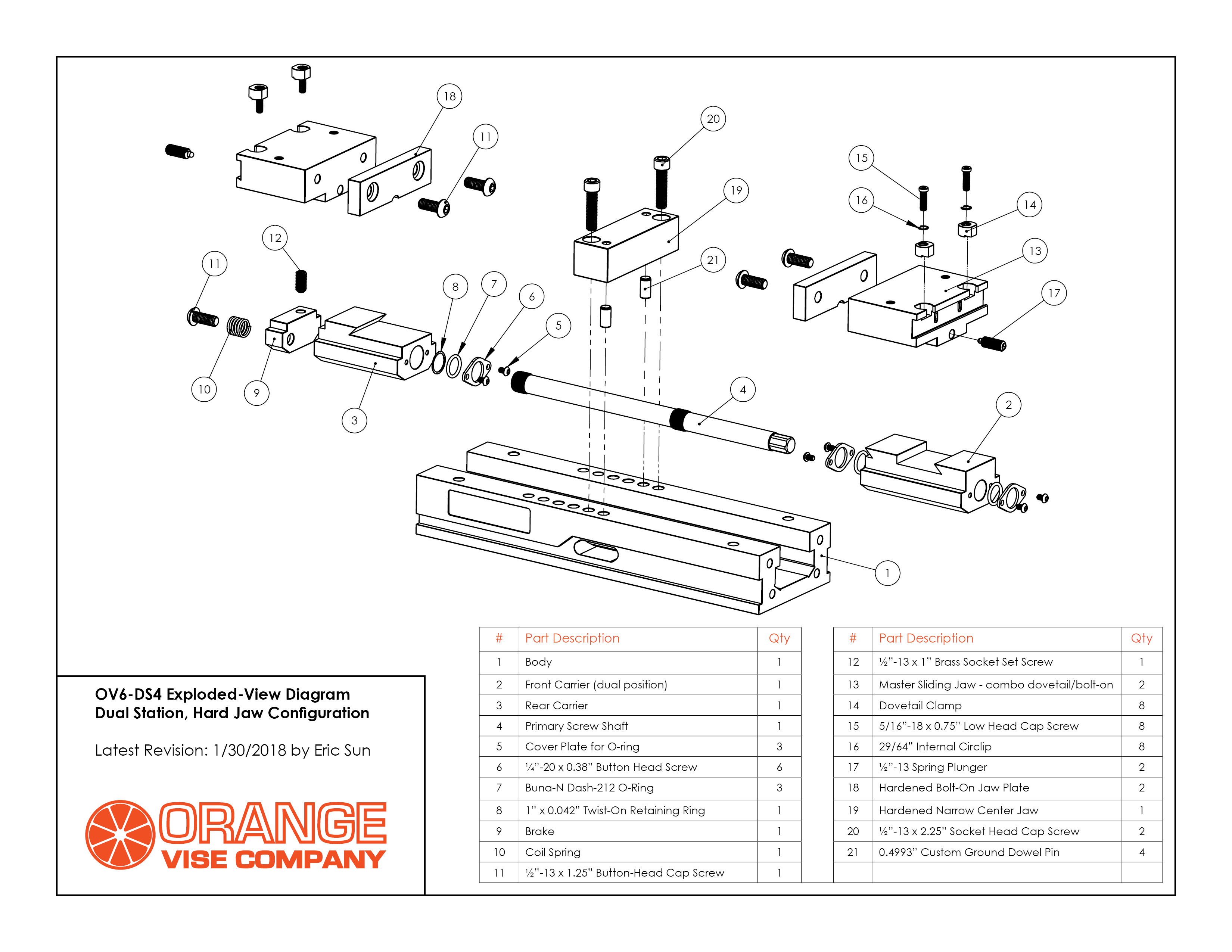

Parts List Cross Reference
| # | NAME | DESCRIPTION | OV SKU # | MCMASTER-CARR PART # | TORQUE | TOOL |
| 4 | Primary Screw Shaft | 4th-Gen 1.0" diameter differential screw | 100-931, 100-932, 100-933, 100-934 | N/A | 120 lb ft MAX | 3/4" hex |
| 5 | Retaining Plate Screw | 1/4"-20 x 0.625" Button Head | -- | 91255A535 | 60 lb-inch | 5/32" Allen |
| 6 | Retaining Plate | O-ring Retaining Plate | N/A | |||
| 7 | O-Ring | DASH-213, Buna-N, Pack of 100 | -- | 9452K33 | -- | -- |
| 8 | Retaining Ring | 1" x 0.042" Twist-On, Steel | -- | 91665A460 | -- | -- |
| 9 | Brake | Third-hand, spring-loaded stop | N/A | -- | -- | |
| 10 | Spring | Coil Spring, 0.875" OD x 0.625" Lg | N/A | -- | -- | |
| 11 | Brake Travel Adjust Screw | 1/2"-13 x 1.25" Button Head Cap Screw | -- | 91255A714 | Back off 1 full turn | 5/16" Allen |
| 12 | Set Screw | 1/2"-13 x 1" Brass Set Screw | -- | 92991A660 | 10 lb-ft | 1/4" Allen |
| 13 | Master Sliding Jaw | Combo dovetail / bolt-on jaw plate interface | 700-101 | -- | -- | -- |
| 14 | Dovetail Clamp | Dovetail Clamp, Steel | -- | -- | -- | |
| 15 | Dovetail Clamp Screw | 5/16"-18 x 0.75" Low Head Cap Screw | -- | 92220A222 | 60 lb-inch (5 lb-ft) | 5/32" Allen |
| 16 | Dovetail Screw Retainer | 29/64" Internal Circlip | -- | 99142A345 | -- | Circlip Pliers |
| 17 | Spring Plunger | 1/2"-13 x 1.25" | -- | 8495A65 | Dual Station: back off 1/8 turn | 1/4" Allen |
| 18 | Bolt-On Jaw Plate | Hardened and Ground Steel, 6" x 1.73" x 1.72" | 700-105 | -- | -- | -- |
| 19 | Narrow Center Jaw | Hardened and Ground Steel, 6" x 1.98" x 1.72" | 700-106 | -- | -- | -- |
| 20 | Narrow Center Jaw Screw | 1/2"-13 x 2.25" socket head cap screw | -- | 91251A721 | 30-60 lb-ft | 3/8" Allen |
| 21 | Dowel Pin | 0.4993" OD, custom ground for Orange Vise | 100-922 | -- | -- | -- |
| 22 | Master Center Jaw | For dovetailed jaw plates | 700-103 | -- | -- | -- |
| 23 | Master Center Jaw | For bolt-on jaw plates | 700-107 | -- | -- | -- |
| 24 | MasterCenter Jaw Screw | 1/2"-13 x 2.25" button head cap screw | -- | 91255A050 | 30-60 lb-ft | 5/16" Allen |
